Scala and OpenGL 39/21/2014

This entry focuses around the concept of a height map and in the process will introduce many other important concepts. The first thing we want to implement in this process is a new grid object where we can control both the size and the number of rows and columns in the grid. This creates a very versatile control that can be used to render a single square all the way up to an extremely granular grid. The reason this is important is because many interactions we perform are done on a per-vertex basis, therefore by increasing the number of vertices we can introduce more detailed effects.

Using the same pattern I used to construct the cube in previous examples I will create a new Grid class: ``` class Grid(gl: GL4, xwidth: Float, xcount: Int, zwidth: Float, zcount: Int) extends Matrices with Movable with Rotatable ```

The initialization of the grid is pretty straight forward: ``` val maxWidth = xwidth * xcount; val maxLen = zwidth * zcount * -1; for(x <- 0 until xcount) { for(z <- 0 until zcount) { val xpos: Float = x * xwidth; val zpos: Float = z * zwidth * -1; //Negative -1 to render it down the z-axis addVertex(xpos, 0.0f, zpos); addTexture(xpos / maxWidth, zpos / maxLen, 0.0f); addVertex(xpos + xwidth, 0.0f, zpos - zwidth); addTexture((xpos + xwidth) / maxWidth, (zpos - zwidth) / maxLen, 0.0f); addVertex(xpos, 0.0f, zpos - zwidth); addTexture(xpos / maxWidth, (zpos - zwidth) / maxLen, 0.0f); addVertex(xpos, 0.0f, zpos); addTexture(xpos / maxWidth, zpos / maxLen, 0.0f); addVertex(xpos + xwidth, 0.0f, zpos); addTexture((xpos + xwidth) / maxWidth, zpos / maxLen, 0.0f); addVertex(xpos + xwidth, 0.0f, zpos - zwidth); addTexture((xpos + xwidth) / maxWidth, (zpos - zwidth) / maxLen, 0.0f); } } ```

It is important to not lose track of the orientation of the z-axis. We are going to start the grid at position (0,0) on the xz axis and work our way down the positive x axis and the negative z axis. For this case I am going to only generate vertices and texture coordinates for the grid, the color and normals will be added in at other stages. Texture coordinates are respresented by a two-value pair with numbers that range from 0.0 to 1.0 to represent the coordinates of our 2D picture. We calculate these coordinates by dividing our vertex coordinates by the maximum values to convert them to a number between 0.0 and 1.0.

In order to render the height map we will need to introduce a new shader that can properly handle this texture data and convert it into vertical coordinates. This step will need to be performed at the beginning of our pipeline in the vertex shader before we attempt to do anything else with that vertex: ``` void main(void) { //Fetch the color value of the texture at the given coordinates vec4 texColor = texture(s, texCoords.xy); //Re-calculate the vertex position by increasing the y-location based on the color of the texture //The texture is greyscale so all three components in the vector should be the same. We do however want //to multiplay the value by a scaling amount to increase the height of the terrain vec4 newPosition = vec4(position.x, position.y + texColor.y * 5.0, position.z, position.w); gl_Position = pMatrix * mvMatrix * newPosition; //mvPosition will contain the vector position modified by the mvMatrix, we need this because the position the //geometry shader normally gets will also be modified by the projection matrix and therefore be unsuitable //for lighting calculations mvPosition = vec3(mvMatrix * newPosition); lightPos = vec3(0.0, 1.0, 1.0); //This will just pass through the color to the geometry shader where the intensity will be actually calculated intensity = color; } ```

The first line here samples the texture color at the texture coordinates that were fed into the shader. The four component vector returned represents the texture color, but since we know it is greyscale then we know we can pull the value out of any of the first three components and achieve the same effect. The value we pull out of that vector will be a value between 0 (black) and 1 (white) representing the height of the terrain at that location. Using that value we create our new position using the original position fed into the shader and modifying the y-position with our new value.

Unfortunately, now that we have changed the y-position of that vertex we can no longer use any pre-calculated normal vector for the grid since the resulting triangle is now facing a new direction. Somehow we need to calculate a new normal vector based on the new vertex coordinates in order for us to properly calculate the lighting for the height map.

A well known way to compute a new normal vector for a triangle is by performing a cross product of two of the vectors that make up the triangle. Unfortunately we do not have the information we need to perform the cross product in the vertex shader since it is only capable of computing a single vertex at a time. To calculate our cross product we need to introduce a new shader into the pipeline called a geometry shader. This shader will execute inbetween the vertex and fragment shaders and allows us to see all three vertices that make up our triangle at once.

Using this information we can calculate the two vectors that make up the triangle and then perform the cross product on them to find our new normal vector. ``` in vec3 mvPosition[]; in vec3 lightPos[]; in vec4 intensity[]; out vec4 gIntensity; void main(void) { int i; //Calculate the normal for the triangle, this will be the same for all vertices vec4 ab = normalize(gl_in[0].gl_Position - gl_in[1].gl_Position); vec4 bc = normalize(gl_in[1].gl_Position - gl_in[2].gl_Position); //The cross product of two vectors will create a new vector that points in the direction //the plane created by the first two vectors is facing. In other words a normal vector. vec3 normal = normalize(cross(vec3(bc), vec3(ab))); //I wish I could explain this better. It appears that vertical surfaces generate a normal pointing //in the wrong direction. Reflecting it across the xy-plane fixes this problem normal.z = -normal.z; for(i = 0; i < gl_in.length(); i++) { gl_Position = gl_in[i].gl_Position; //Calculate the intensity based off the light position and calculated normal vec3 vLight = normalize(lightPos[i] - mvPosition[i]); gIntensity = (max(dot(vLight, normal), 0.0) + 0.0) * intensity[i]; EmitVertex(); } EndPrimitive(); } ```

You can see at the top here that our inputs are slightly different. They share the same names as the outputs from our vertex shader but they are now arrays of values rather than single values. This works well for us because now that we have all three vertices of our triangle we can compute the normal for it. Unfortunately the resulting normal is pointing the wrong way down the z-axis (I suspect this has something to do with how OpenGL orients the z-axis), but this can be easily fixed by negating the z-value and reflecting it across the plane formed by the xy-axis.

Once we have our normal we can finally compute the intensity of the color for all vertices in the triangle. This is easily done using the dot product calculation used in the previous blog entry.

With our shaders ready we can get ready to render our height map. The first step is to create our new shader program that consumes our new shader as well as all of our uniform and texture data. ``` class HeightMapProgram(gl: GL4) extends GLProgram { init(); private def init(): Unit = { targetGL = gl; val createVertexShader = ShaderLoader.createShader(gl, GL2ES2.GL_VERTEX_SHADER, this.getClass())_; val createFragmentShader = ShaderLoader.createShader(gl, GL2ES2.GL_FRAGMENT_SHADER, this.getClass())_; val createGeometryShader = ShaderLoader.createShader(gl, GL3.GL_GEOMETRY_SHADER, this.getClass())_; val vShader: ShaderCode = createVertexShader("shaders/heightvshader.glsl"); if(vShader.compile(gl, System.out) == false) throw new Exception("Failed to compile vertex shader"); val fShader: ShaderCode = createFragmentShader("shaders/heightfshader.glsl"); if(fShader.compile(gl, System.out) == false) throw new Exception("Failed to compile fragment shader"); val gShader: ShaderCode = createGeometryShader("shaders/heightgshader.glsl"); if(gShader.compile(gl, System.out) == false) throw new Exception("Failed to compile geometry shader"); program = ShaderLoader.createProgram(gl, vShader, gShader, fShader); if(program.link(gl, System.out) == false) throw new Exception("Failed to link program"); //No longer needed vShader.destroy(gl); fShader.destroy(gl); } override def getVerticesIndex() = 0; override def getTexturesIndex() = 1; override def getNormalsIndex() = -1; override def getColorsIndex() = 2; override def getModelViewIndex() = 3; override def getITModelViewIndex() = 4; override def getProjectionIndex() = 5; } ```

The major differences here are the locations of the inputs and the fact that we are added a new shader to our pipeline when we create our program.

The next step is to initialize our grid and texture data in the main application's initialization. ``` heightProgram = new HeightMapProgram(gl); grid = new Grid(gl, 0.1f, 200, 0.1f, 200); mapTexture = TextureIO.newTexture(this.getClass().getResourceAsStream("resources/heightmap2.jpg"), false, TextureIO.JPG); ```

The map texture is a simple greyscale image, you can find many good examples by searching for 'height map' on google images. You can also easily construct one yourself with a drawing application. Fundamentally a height map is very similar to a file generated by a 3D modeling application which makes it a great entry point into understanding how 3D modeling works because it is very easy to visualize how it all fits together.

The next step is to prepare our logic for actually rendering the height map: ``` heightProgram.activate(); grid.reset(); grid.move(-10.0f, 0.0f, 10.0f); grid.rotateY(degrees); grid.move(0.0f, -5.0f, -15.0f); gl.glUniformMatrix4fv(heightProgram.getProjectionIndex(), 1, false, mvp.glGetMatrixf()); gl.glUniform4f(heightProgram.getColorsIndex(), 0.0f, 1.0f, 1.0f, 1.0f); mapTexture.bind(gl); grid.draw(heightProgram); heightProgram.deactivate(); ```

To simplify the application I've chosen to insert the color data through a uniform variable. The interesting thing here is you can see how the map texture is bound to the program which we will then access in the shader through the 'sampler2D' uniform.

At this point you could run the application and render the height map. However you may notice something doesn't look quite light. This is because in some height maps you introduce the chance that two triangles facing the camera are located on overlapping x and y coordinates down the z axis. The application will attempt to render both at the same time which will play games with how things look.

To prevent this we need to enable a depth test which will ensure that only the front-most triangle will be rendered to the screen. Thankfully this step is reasonably easy. First we need to allocate bits for the depth test early in application initialization: ``` val config: GLCapabilities = new GLCapabilities(GLProfile.getDefault()); config.setDepthBits(8); ```

Then we need to enable our depth test: ``` override def init(drawable: GLAutoDrawable): Unit = { val gl: GL4 = drawable.getGL().getGL4(); //Enable culling, by default only triangles with vertices ordered in a counter clockwise order will be rendered gl.glEnable(GL.GL_CULL_FACE); gl.glEnable(GL.GL_DEPTH_TEST); ```

Finally we need to make sure to clear the depth bit at the start of each render, much like how we would clear the color of the screen: ``` gl.glClear(GL.GL_DEPTH_BUFFER_BIT); ```

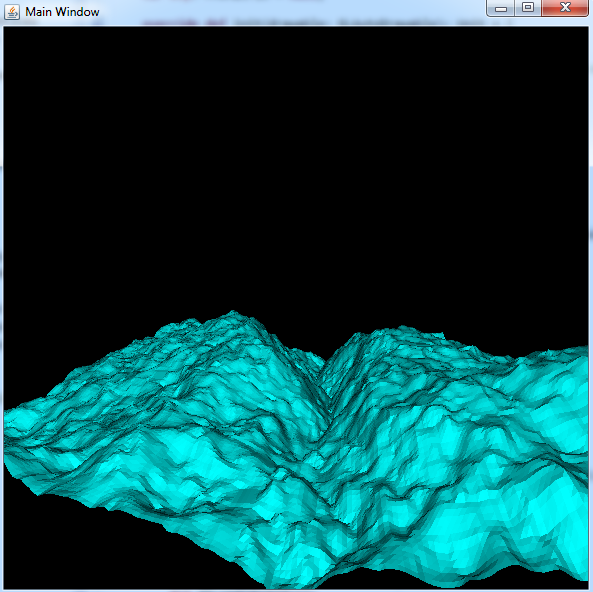

With all of this in place you can now run the application and render the height map based on the input picture you provided

This is also a good way to demonstrate a common mechanism you see in graphics applications. By simple increasing or decreasing the number of rows and columns in the grid you can change how detailed the height map appears (at the cost of performance). You have likely seen a similar mechanism in modern games where lowering the graphic settings has caused characters to appear more blocky.

Scala and OpenGL 2.55/26/2014

The goal of this entry will be to refine the previous implementation and focus more on the Scala aspects of the project since the previous article focused mostly on the OpenGL API. What we hope to achieve is the beginnings of a graphics API that we can reuse going forward to construct even more complex applications.

In the previous article I introduced a simple fixed point light shader program. My first goal is to encapsulate that program into a reusable class that will make it easier to use to render objects in future projects. However, I also want to design it in a way that it can be interchanged with other programs to achieve different effects. So the first thing I need to do is to create a base class that all of my future shader classes will inherit from. This base class will define what I expect to be common across future shader programs, specifically: initialization, destruction and locations of shader inputs. ``` trait GLProgram { var program: ShaderProgram = null; var targetGL: GL4 = null; def getVerticesIndex(): Int; def getNormalsIndex(): Int; def getColorsIndex(): Int; def getModelViewIndex(): Int; def getITModelViewIndex(): Int; def getProjectionIndex(): Int; def activate(): Unit = { if(program == null || targetGL == null) return; program.useProgram(targetGL, true) } def destroy(): Unit = { if(program == null || targetGL == null) return; program.destroy(targetGL); } } ```

In this case I use a Scala trait to design my base class and it serves similar functionality to an abstract class in Java. The biggest difference between Scala traits and Java interfaces or abstract classes is not only can they contain implementation logic like an abstract class but you can mix multiple traits into a class much like interfaces (using the 'with' keyword), unlike Java applications which would only allow you to inherit from a single concrete class.

The trait above defines my activate method which will be called before I want to render something with the program, the destroy method to cleanup the program when it is no longer in use and a variety of get methods to obtain the indexes of the shader inputs. When my fixed point light shader class is implemented using this trait it looks like this: ``` class FixedLightProgram(gl: GL4) extends GLProgram { init(); private def init(): Unit = { targetGL = gl; val createVertexShader = ShaderLoader.createShader(gl, GL2ES2.GL_VERTEX_SHADER, this.getClass())_; val createFragmentShader = ShaderLoader.createShader(gl, GL2ES2.GL_FRAGMENT_SHADER, this.getClass())_; val vShader: ShaderCode = createVertexShader("shaders/vshader.glsl"); if(vShader.compile(gl, System.out) == false) throw new Exception("Failed to compile vertex shader"); val fShader: ShaderCode = createFragmentShader("shaders/fshader.glsl"); if(fShader.compile(gl, System.out) == false) throw new Exception("Failed to compile fragment shader"); program = ShaderLoader.createProgram(gl, vShader, fShader); if(program.link(gl, System.out) == false) throw new Exception("Failed to link program"); //No longer needed vShader.destroy(gl); fShader.destroy(gl); } override def getVerticesIndex() = 0; override def getNormalsIndex() = 1; override def getColorsIndex() = 2; override def getModelViewIndex() = 3; override def getITModelViewIndex() = 4; override def getProjectionIndex() = 5; } ```

The next thing I want to extract out of the original implementation is my logic for rendering my cube. Since a cube can be a very useful asset to render the goal is to turn it into a class that can be easily constructed and manipulated so we can render it whenever we need a cube. I also expect in the future I will have similar objects like my cube that will be rendered in the same way. This means that I also want to capture that common logic into a set of traits that can then be mixed into future classes that represent the different objects I want to render. In particular I want to separate the logic for transforming my cube into separate traits that can reused. ``` trait Movable extends Matrices { def move(x: Float, y: Float, z: Float): Unit = { super.pushTransform( (pmv: PMVMatrix) => { pmv.glTranslatef(x, y, z); } ); } } trait Scalable extends Matrices { def scale(x: Float, y: Float, z: Float): Unit = { super.pushTransform( (pmv: PMVMatrix) => { pmv.glScalef(x, y, z); } ); } } trait Rotatable extends Matrices { def rotateX(degrees: Float): Unit = { super.pushTransform( (pmv: PMVMatrix) => { pmv.glRotatef(degrees, 1.0f, 0.0f, 0.0f); } ); } def rotateY(degrees: Float): Unit = { super.pushTransform( (pmv: PMVMatrix) => { pmv.glRotatef(degrees, 0.0f, 1.0f, 0.0f); } ); } def rotateZ(degrees: Float): Unit = { super.pushTransform( (pmv: PMVMatrix) => { pmv.glRotatef(degrees, 0.0f, 0.0f, 1.0f); } ); } def rotateXYZ(degrees: Float, x: Float, y: Float, z: Float): Unit = { super.pushTransform( (pmv: PMVMatrix) => { pmv.glRotatef(degrees, x, y, z); } ); } } ```

These traits expose the three most common transformations I might perform on my cube (or other objects) before I want to render them. To tie all of this behavior together I create a separate trait that manages the applied transformations and generates the modelview matrix that will be fed into my shader program. ``` class Matrices { val pmv: PMVMatrix = new PMVMatrix(); val transforms: ArrayBuffer[(PMVMatrix) => Unit] = new ArrayBuffer[(PMVMatrix) => Unit](); var dirty = true; //We actually want to play back the transforms in reverse order so we will prepend them to the current //transformation list. def pushTransform(transform: (PMVMatrix) => Unit): Unit = { transform +=: transforms; dirty = true; } def reset(): Unit = { transforms.clear(); dirty = true; } private def applyTransforms(): Unit = { if(!dirty) return; pmv.glMatrixMode(GLMatrixFunc.GL_MODELVIEW); pmv.glLoadIdentity(); for(transform <- transforms) { transform(pmv); } dirty = false; } /** * Obtain the default modelview matrix with all transforms applied. */ def getModelView(): FloatBuffer = { applyTransforms(); return pmv.glGetMatrixf(); } /** * Obtain the intverse transpose modelview matrix with all transforms applied. * Useful for normal transformations. */ def getITModelView(): FloatBuffer = { applyTransforms(); return pmv.glGetMvitMatrixf(); } } ```

This will store the transformations in an ArrayBuffer as function references that will be applied in reverse order at the time we retrieve our modelview matrix. The reason we reverse the order is because as I described in the previous article these transformations must be applied in reverse order to construct the correct modelview matrix for our shader. By reversing this it will make our interactions with classes that include this trait much more intuitive.

When these get mixed into my cube class it will look like this: ``` class Cube(gl: GL4) extends Matrices with Movable with Scalable with Rotatable ```

What I think is interesting with this approach is you only need to mix in the traits that make sense for the class you are trying to define. If I did not think it was appropriate to scale my cube I would simply not mix in the 'Scalable' trait. We can also make new traits in the future that can be mixed in as well to provide new transformations that can be applied to the cube.

This also makes manipulating much more logical and less abstract since it hides the logic of manipulating the modelview matrix directly and exposes it using concepts that are easier to grasp ("I am moving this cube" versus "I am constructing a translation matrix").

The rest of the cube implementation is straightforward. The initialization routine creates our vertices, normals and color buffers and assigns them to a vertex array object. Ultimately the only few pieces of state the cube must maintain are the integer values that represent these VBO and VAO objects. The rest of the logic in this class deals mostly with hooking it up to a shader program and performing the draw. ``` def enableVertexBuffer = enableBuffer(verticesBuffer)_; def enableNormalBuffer = enableBuffer(normalsBuffer)_; def enableColorBuffer = enableBuffer(colorBuffer)_; private def enableBuffer(bufferID: Int)(index: Int): Unit = { gl.glBindVertexArray(vaoID); gl.glBindBuffer(GL.GL_ARRAY_BUFFER, bufferID); //Associates the data in the currently bound VBO with the currently bound VAO at the specified index. //The arguments provided describe the format of the provided buffer which in this case contains //tightly packed 4-component float vectors. gl.glVertexAttribPointer(index, 4, GL.GL_FLOAT, false, 0, 0); gl.glEnableVertexAttribArray(index); } def draw(program: GLProgram): Unit = { enableVertexBuffer(program.getVerticesIndex()); enableNormalBuffer(program.getNormalsIndex()); enableColorBuffer(program.getColorsIndex()); //Modelview matrix gl.glUniformMatrix4fv(program.getModelViewIndex(), 1, false, getModelView()); //Normal matrix (transpose of the inverse modelview matrix) gl.glUniformMatrix4fv(program.getITModelViewIndex(), 1, false, getITModelView()); gl.glBindVertexArray(vaoID); gl.glDrawArrays(GL.GL_TRIANGLES, 0, vertexCount); } ```

First we define some helper functions for enabling the vertices, normals and color inputs into the shader program. This is done using some partially defined functions where the first parameter applied is the VBO identifier that was generated during initialization.

The last function is our drawing routine which will enable all of our inputs to the passed in program using our generic GLProgram trait and calling the get methods on it to obtain the locations for the shader inputs. This will allow us to use different shader programs in the future to render this cube to achieve different effects.

When this all ties together our original program simplies down to this: ``` override def init(drawable: GLAutoDrawable): Unit = { val gl: GL4 = drawable.getGL().getGL4(); //Enable culling, by default only triangles with vertices ordered in a counter clockwise order will be rendered gl.glEnable(GL.GL_CULL_FACE); try { program = new FixedLightProgram(gl); cube = new Cube(gl); mvp = new PMVMatrix(); } catch { case e: Exception => { e.printStackTrace(); System.exit(1); } } } override def display(drawable: GLAutoDrawable): Unit = { val gl: GL4 = drawable.getGL().getGL4(); val blackArray: Array[Float] = Array(0.0f, 0.0f, 0.0f, 1.0f); gl.glClearBufferfv(GL2ES3.GL_COLOR, 0, blackArray, 0); program.activate(); val time: Long = System.currentTimeMillis(); val degrees: Float = ((time / 10) % 360); cube.reset(); cube.rotateXYZ(degrees, 1.0f, 1.0f, 0.0f); cube.move(0.0f, 0.0f, -5.0f); mvp.glMatrixMode(GLMatrixFunc.GL_PROJECTION); mvp.glLoadIdentity(); //90 degree field of view, aspect ratio of 1.0 (since window width = height), zNear 1.0f, zFar 20.0f mvp.gluPerspective(90.0f, 1.0f, 1.0f, 20.0f); mvp.update(); //Projection matrix gl.glUniformMatrix4fv(program.getProjectionIndex(), 1, false, mvp.glGetMatrixf()); cube.draw(program); } ```

There is probably still some improvements to be made to this design but it is a good step in the direction of ultimately creating a rendering engine that can be used to create more complex scenes and effects.

Scala and OpenGL 25/12/2014

While the previous article on Scala and OpenGL was a bit lightweight, this one will serve to introduce many advanced concepts for basic 3D graphics. Our goal will be to render a basic, multicolored rotating cube like the one pictured below.

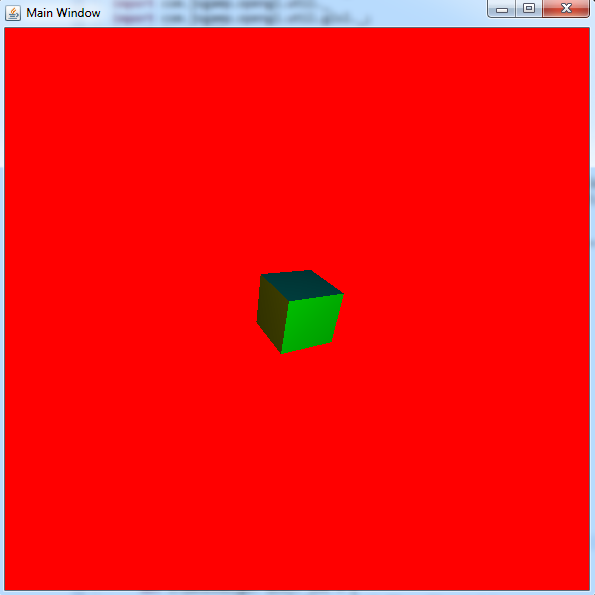

The first concept we need to understand is how our vertex data is fed into our vertex shader through the use of vertex buffer objects (VBOs) and vertex array objects (VAOs). To get started, let's create a float buffer containing all of our vertices. To do this I've constructed some basic utility objects and classes to make the process easier. First is a BufferUtil object that handles the logic of generating a VBO identifier, adding vertices to my float buffer and then storing in my VBO. ``` object BufferUtils { def createBuffer(gl: GL4): Int = { val bufferArray: IntBuffer = IntBuffer.allocate(1); gl.glGenBuffers(1, bufferArray); return bufferArray.get(); } def createVAO(gl: GL4): Int = { val vaoArray: IntBuffer = IntBuffer.allocate(1); gl.glGenVertexArrays(1, vaoArray); return vaoArray.get(); } def setBufferData(gl: GL4, bufferID: Int, data: FloatBuffer): Unit = { //glBindBuffer sets the active array buffer to be manipulated. gl.glBindBuffer(GL.GL_ARRAY_BUFFER, bufferID); //Using GLBuffers utility class to provide the size of the float primitive so I can calculate the size val size: Long = data.limit() * GLBuffers.sizeOfGLType(GL.GL_FLOAT); gl.glBufferData(GL.GL_ARRAY_BUFFER, size, data, GL.GL_DYNAMIC_DRAW); } def addVertex(vertices: FloatBuffer)(x: Float, y: Float, z: Float): Unit = { vertices.put(x); vertices.put(y); vertices.put(z); vertices.put(1.0f); } } ```

The common theme you will begin to see is a reliance on the java.nio buffer objects and integer identifiers to identify the objects in the OpenGL API. The createBuffer() method above will allocate a new VBO identifier which we will need to keep track of through our program execution. It is needed because before we can perform work on the buffer we have to first bind it with a call to glBindBuffer(). After we have created our VBO and have a FloatBuffer of our vertices we can then store those vertices with a call to glBufferData() which will use the currently bound buffer to do its work.

But first we need to generate the vertices for our cube. ``` bufferID = BufferUtils.createBuffer(gl); normalID = BufferUtils.createBuffer(gl); colorID = BufferUtils.createBuffer(gl); //2 triangles per face, 3 vertices per triangle, 4 elements per vertex, 6 faces = 144 vertices vertexCount = 144; val vertices: FloatBuffer = FloatBuffer.allocate(vertexCount); val normals: FloatBuffer = FloatBuffer.allocate(vertexCount); val colors: FloatBuffer = FloatBuffer.allocate(vertexCount); val addVertex = BufferUtils.addVertex(vertices)_; val addNormal = BufferUtils.addVertex(normals)_; val addColor = BufferUtils.addVertex(colors)_; vertices.clear(); normals.clear(); colors.clear(); addVertex(-0.5f, -0.5f, 0.5f); addVertex(0.5f, 0.5f, 0.5f); addVertex(-0.5f, 0.5f, 0.5f); addVertex(-0.5f, -0.5f, 0.5f); addVertex(0.5f, -0.5f, 0.5f); addVertex(0.5f, 0.5f, 0.5f); for(n <- 0 to 5) { addNormal(0.0f, 0.0f, 1.0f); addColor(1.0f, 1.0f, 0.0f); } addVertex(-0.5f, -0.5f, -0.5f); addVertex(-0.5f, 0.5f, -0.5f); addVertex(0.5f, 0.5f, -0.5f); addVertex(-0.5f, -0.5f, -0.5f); addVertex(0.5f, 0.5f, -0.5f); addVertex(0.5f, -0.5f, -0.5f); for(n <- 0 to 5) { addNormal(0.0f, 0.0f, -1.0f); addColor(0.0f, 1.0f, 0.0f); } addVertex(-0.5f, -0.5f, -0.5f); addVertex(-0.5f, 0.5f, 0.5f); addVertex(-0.5f, 0.5f, -0.5f); addVertex(-0.5f, -0.5f, -0.5f); addVertex(-0.5f, -0.5f, 0.5f); addVertex(-0.5f, 0.5f, 0.5f); for(n <- 0 to 5) { addNormal(-1.0f, 0.0f, 0.0f); addColor(0.0f, 0.0f, 1.0f); } addVertex(0.5f, -0.5f, -0.5f); addVertex(0.5f, 0.5f, -0.5f); addVertex(0.5f, 0.5f, 0.5f); addVertex(0.5f, -0.5f, -0.5f); addVertex(0.5f, 0.5f, 0.5f); addVertex(0.5f, -0.5f, 0.5f); for(n <- 0 to 5) { addNormal(1.0f, 0.0f, 0.0f); addColor(0.0f, 0.5f, 0.5f); } addVertex(-0.5f, -0.5f, -0.5f); addVertex(0.5f, -0.5f, -0.5f); addVertex(0.5f, -0.5f, 0.5f); addVertex(-0.5f, -0.5f, -0.5f); addVertex(0.5f, -0.5f, 0.5f); addVertex(-0.5f, -0.5f, 0.5f); for(n <- 0 to 5) { addNormal(0.0f, -1.0f, 0.0f); addColor(0.5f, 0.5f, 0.0f); } addVertex(-0.5f, 0.5f, -0.5f); addVertex(0.5f, 0.5f, 0.5f); addVertex(0.5f, 0.5f, -0.5f); addVertex(-0.5f, 0.5f, -0.5f); addVertex(-0.5f, 0.5f, 0.5f); addVertex(0.5f, 0.5f, 0.5f); for(n <- 0 to 5) { addNormal(0.0f, 1.0f, 0.0f); addColor(0.5f, 0.0f, 0.5f); } vertices.flip(); normals.flip(); colors.flip(); ```

You will notice we are actually creating three buffers for our cube. In addition to the vertices for each cube face we are also specifying the normal vector and color of each vertex. In total there are 144 vertices that make up our cube since we have 6 faces with two triangles to form each face and three vertices to make a triangle. It is possible to reduce the number of vertices needed by changing the arguments passed to glDrawArrays() but for now we can keep things simple.

The normal and color data are necessary to compute the lighting and determine final color of each vertex in order to give the image some depth. The normal represents the direction each cube side is facing, therefore it is the same for all 6 vertices that make up that face. We also use the same color for all 6 vertices to make each face have its own color. I will discuss how these vectors are used when it comes time to write our shader.

Another thing worth mentioning is that all of our vertices are centered around the origin. These are technically already in what is called 'normalized device space' which is the region defined by the -1 to 1 range on all three axis. Anything that falls within this region will ultimately get transformed into window coordinates and displayed to the user. Normalized device coordinates are not particularly important at this point but centering the cube around the origin and making its dimensions 1x1x1 will also make the process of transforming it in the future much easier as well.

You may not realize it but there is actually some importance to the order that the vertices are arranged in order to get our cube to render properly. By default OpenGL will always render every triangle we specify. This does not work for us since we don't want to render the back side of the cube. To prevent this from happening we enable a feature called 'culling' which will only render triangles whos vertices are specified in a certain order. ``` gl.glEnable(GL.GL_CULL_FACE); ```

By default trangles whos vertices are specified in counter-clockwise order are considered front-facing triangles and will be rendered to the user. This means when we construct the different faces of the cube we must take extra care use different vertex ordering for opposite faces since whenever one face is visible the opposite should not be visible.

Now that we have our buffers populated we make sure to call flip() and begin the process of feeding them into our VBOs and constructing our VAOs. ``` BufferUtils.setBufferData(gl, bufferID, vertices); //Now that the vertex buffer object (VBO) is constructed we need to create a vertex array object (VAO) //The difference between the two is the VAO contains additional meta-data that describes //the formatting of the contents of the VBO. vaoID = BufferUtils.createVAO(gl); gl.glBindVertexArray(vaoID); //Attribute index 0 will obtain its data from whatever buffer is currently bound to GL_ARRAY_BUFFER and read it according //to the following specifications. gl.glVertexAttribPointer(0, 4, GL.GL_FLOAT, false, 0, 0); gl.glEnableVertexAttribArray(0); //setBufferData has the side-effect of changing the bound VBO BufferUtils.setBufferData(gl, normalID, normals); gl.glVertexAttribPointer(1, 4, GL.GL_FLOAT, false, 0, 0); gl.glEnableVertexAttribArray(1); BufferUtils.setBufferData(gl, colorID, colors); gl.glVertexAttribPointer(2, 4, GL.GL_FLOAT, false, 0, 0); gl.glEnableVertexAttribArray(2); ```

A VAO is essentially your VBO wrapped with additional data that describes the contents of the buffer. This data is provided through the call to glVertexAttribPointer() which will describe the currently bound VBO and store the information in the currently bound VAO. We create a single VAO to store all three of our buffers, making sure to allocate a unique index for each as the first parameter to glVertexAttribPointer(), those indices will ultimately be used for how we reference our data in the vertex shader. In the case of this application we describe our VBO as containing "4 component vertices of type 'float' that should not be normalized and is tightly packed (no data between vertices)".

At this point we are almost ready to render the cube, in fact, since it is already in normalized device space you could most likely make the call to glDrawArrays() and have the cube render properly. Although without any transformations you will be looking directly at one side of the cube and it will render as a plain square. To achieve the 3D affect we need to prepare some of our transformation vertices first. ``` mvp.glMatrixMode(GLMatrixFunc.GL_MODELVIEW); mvp.glLoadIdentity(); val time: Long = System.currentTimeMillis(); val degrees: Float = ((time / 10) % 360); mvp.glTranslatef(0.0f, 0.0f, -5.0f); mvp.glRotatef(degrees, 1.0f, 1.0f, 0.0f); mvp.update(); //Modelview matrix gl.glUniformMatrix4fv(3, 1, false, mvp.glGetMatrixf()); //Normal matrix (transpose of the inverse modelview matrix) gl.glUniformMatrix4fv(4, 1, false, mvp.glGetMvitMatrixf()); mvp.glMatrixMode(GLMatrixFunc.GL_PROJECTION); mvp.glLoadIdentity(); //90 degree field of view, aspect ratio of 1.0 (since window width = height), zNear 1.0f, zFar 20.0f mvp.gluPerspective(90.0f, 1.0f, 1.0f, 20.0f); mvp.update(); //Projection matrix gl.glUniformMatrix4fv(5, 1, false, mvp.glGetMatrixf()); ```

To make life easier I have used to JOGL PMVMatrix utility class to manage my matrices. This class has many valuable matrix operations for constructing, multiplying, storing and fetching matrix data used for your application.

The two matrices I work with in my application are the ModelView matrix and the Projection matrix. The ModelView matrix is what is responsible for moving my cube around and rotating it in place while the Projection matrix is what is responsible for translating my cube back into normalized device coordinates while also preserving the illusion that it is far off in the distance.

To construct my ModelView matrix I first change my matrix mode to ensure I am working on the right matrix and re-initialize it with the identity matrix (Matrix1 multiplied by the identity matrix = Matrix1). To achieve a constant spin I use the current system time and divide it by 10 to slow down the spin a little bit, then perform a modulus division to achieve a rotation degrees between 0 and 360. To perform my transformations I first multiply the identity matrix by a translation down the Z axis (into the screen) and then I multiply the resulting matrix by my rotation of x degrees on the X and Y axis. If you think about the order of operations however you may realize that this is backwards. In order to achieve an object spinning in place you should rotate then translate, otherwise the object will spin a wide circle around the axis of rotation. This strange ordering is explained in chapter 4 of the OpenGL SuperBible under the section labeled "Concatenating Transformations". It explains that is important to read transformations in reverse order. This behavior is closely tied to the order of how we perform our vertex transformations in the vertex shader which is usually a matrix multiplied by a vector.

To construct the Projection matrix I use the gluPerspective() method to construct a perspective projection. Another type of projection is the 'orthographic' projection but that typically used for 2D rendering, the perspective projection is what gives us the 3D appearance to simulate how things would appear in real life. The perspective projection is constructed by defining a 3D space bounded by field-of-view, screen ratio, near and far planes. In my case I went with a 90 degree field of view on the y-axis, an aspect ratio of 1 (this is normally viewport width divided by viewport height, in my case they are equivalent), a near plane located 1 unit down the z-axis and a far plane located 20 units down the z-axis. Any objects that are located within 3D space defined by these attributes will be transformed into normalized device space and rendered to the user. In order to render my cube I must move it down the z-axis by a few units in order for it to fall between the near and far planes ('down' referring to the negative z-axis which is the axis extending into the screen).

There is also usually a look-at matrix involved which is an additional transformation to simulate the effect of a movable camera. For this application you can just assume that our 'camera' is located at the origin staring down the negative z-axis.

Once our matrices are constructed we can feed them into our shader with calls to glUniformMatrix4fv(). Like our VAOs the first argument is a unique index that will be used to reference our uniform data in the vertex shader. It is referred to a 'uniform' because it is a single value that is constant amongst all of our vertices. This is different from data like normals and colors which could be unique for each vertex. You will also probably notice I snuck in an additional call to glUniformMatrix4fv after we configure the ModelView matrix. That call is responsible for providing the normal matrix we will use to transform our normal vectors. In most cases the normal matrix can be obtained by computing the transposed inverse of the ModelView matrix (which our PMVMatrix class gives us an easy method to obtain that value).

With all of our data prepared we can now construct our vertex shader ``` #version 430 core layout (location = 0) in vec4 position; layout (location = 1) in vec4 normal; layout (location = 2) in vec4 color; layout (location = 3) uniform mat4 mvMatrix; layout (location = 4) uniform mat4 normalMatrix; layout (location = 5) uniform mat4 pMatrix; out vec4 intensity; void main(void) { gl_Position = pMatrix * mvMatrix * position; //Need to transform our normal to match the transformation of the position //This is done with the normal matrix which is the transposed inverse of the modelview matrix vec3 vNormal = normalize(vec3(normalMatrix * normal)); vec3 lightPos = vec3(0.0, 0.0, 1.0); vec3 vLight = normalize(lightPos - vec3(mvMatrix * position)); intensity = max(dot(vLight, vNormal), 0.0) * color; } ```

At the top you will see how we connect all of that data we just created to our shader inputs by using the location specifier when defining the input variables. Our shader will have two outputs, the built-in gl_Position vector and the intensity vector which contains the computed color after we perform our lighting calculations.

To obtain our modified position we first multiply our projection and modelview matrices together to obtain the pmvMatrix (projection-model-view matrix). We finally multiply this by our original position vertex to obtain the transformed vertex. If you remember our original vertex was inside normalized device space. This is true for our computed vertex as well except the computed vertex may have been moved to create the appearance of our cube being in the distance and rotating.

Lighting is a bit more difficult and can be abstract. To determine if the face of the cube should be illuminated we have to determine whether it is facing our light source or not. In this example I have put the light source at a fixed location on the positive z-axis (the axis extending towards you off the screen). If we take the position of the light source and the direction the vertex is facing (our normal vector) we can compute the angle between the two using the dot product equation. The dot product of two vectors is equal to the cosine of the angle between them times the lengh of the two vectors. If we normalize the vectors first (make their length equal to 1) then this equation simplifies and the dot product becomes equal to the cosine of the angle between the two vectors. If the two vectors are facing the same direction then the angle between them is 0 and the cosine of 0 is 1. This means the light source is hitting the vector directly and it should be completely illuminated. If the angle is between 90 degrees and 270 degrees then the vertex is facing off to the side or away from the light source and not be illuminated.

To start our lighting calculatation we multiply our normal vector by the normal matrix we created earlier and normalize the result since otherwise our normal vector would always be pointing at the original direction the cube face was pointed before we moved and rotated it. We also turn it into a 3 component vector since that last component is no longer important once we are done with our matrix transformations. To create the vector from our position to the light source we simply subtract the transformed position from the light position, making note to not include the projection transformation in this calculation since it is not related to where our vertex is located. Now that we have the vector from our vertex to the lightsource and the vector of where the vertex is facing we can compute our dot product. The resulting floating point value can then be multiplied against our original color to give it the appearance of becoming dark as it spins away from our light source. The computed intensity is passed out of our vertex shader where it will be used in our fragment shader to color our cube which is very simple: ``` #version 430 core in vec4 intensity; out vec4 color; void main(void) { color = intensity; } ```

With our shaders ready to go we can finally make our call to glDrawArrays() and render the cube using the currently bound VAO. ``` gl.glBindVertexArray(vaoID); //Draws the currently bound vertex array object gl.glDrawArrays(GL.GL_TRIANGLES, 0, vertexCount); ```

Wolfram Alpha is a great website for working with mathematical calculations. It can be very valuable when you find yourself having difficulty visualizing the outcome of some of the vector operations performed by the shader.

The OpenGL wiki has some very useful articles explaining some of the behavior of OpenGL. This can be useful for filling in the gaps left behind by the API pages.

Useful for understanding the differences between the JOGL API and their associated OpenGL API calls. There are also many valuable utility classes (like PMVMatrix) provided as part of the JOGL API.

Scala and OpenGL3/29/2014

It is generally undisputed that the best way to learn new languages is through applying them. Sometimes the difficulty with that approach is coming up with an idea that stresses your knowledge at a high level enough to solidify your skills. After all, the usual 'Hello World' program will only get you so far. My personal experience is that graphics and game development is something that can simultaneously spark your imagination and provide numerous opportunities to test your skills.

That said, I am neither an expert OpenGL developer nor am I an expert Scala developer. I have no technological justification for writing an OpenGL application in Scala, it is intended only as a learning exercise that may hopefully serve as a guidepost for others that which to do the same.

Since Scala is a JVM language we can thankfully rely on the existing libraries for OpenGL development in java. The one I have chosen to go with is JOGL in hopes that it more closely aligns with the core OpenGL API's in order to improve the chance that my knowledge transfers well to other languages like C++. There also exists a library called LWJGL that is designed more towards game development.

I will also be relying on the resources provided in the latest OpenGL Superbible for learning OpenGL. It can be difficult finding good information for learning OpenGL due to its long history. If you are not careful you may end up with a tutorial that teaches the old approach to OpenGL that relies heavily on the state machine versus the newer approaches that use vertex buffers and shaders.

Before any OpenGL application can start you will need to construct your application window. C++ applications usually rely on FreeGLUT to accomplish this. For Scala we can leverage the Swing/AWT API together with a GLCanvas object to construct the window we will render in. Here is the basic code snippit for doing this: ``` object EntryPoint { def main(args: Array[String]): Unit = { val frameMain: Frame = new Frame("Main Window"); frameMain.setLayout(new BorderLayout()); val animator: Animator = new Animator(); frameMain.addWindowListener(new WindowAdapter() { override def windowClosing(e: WindowEvent) = { System.exit(0); } }); val canvas: GLCanvas = new GLCanvas(); animator.add(canvas); canvas.addGLEventListener(new Demo1()); frameMain.setSize(600, 600); frameMain.setLocation(200, 200); frameMain.add(canvas, BorderLayout.CENTER); frameMain.validate(); frameMain.setVisible(true); animator.start(); } } ```

We basically construct a simple frame and add a single canvas object to it. The animator is responsible for creating the typical application loop you see in OpenGL applications and the GLEventListener represents our main class with our render logic. The basic layout of a GLEventListener looks like this: ``` class Demo1 extends GLEventListener { override def init(drawable: GLAutoDrawable): Unit = { } override def display(drawable: GLAutoDrawable): Unit = { } override def reshape(drawable: GLAutoDrawable, x: Int, y: Int, width: Int, height: Int): Unit = { } override def dispose(drawable: GLAutoDrawable): Unit = { } } ```

The init and dispose methods will be called at startup and shutdown of the animator loop. In our case the dispose method most likely doesn't get called when the application is closed since we do not make a call to 'animator.stop()' when the frame closes. In the init method we will initialize our shaders, program and vertex buffers. The display method will loop continuously in order to render each frame, this is where a lot of the application logic will ultimately be triggered from. The reshape method will be called whenever the window is resized, it is important for recalculating your perspective matrix but is not used in this project for now.

First things first, lets create the initialization logic for the application: ``` object ShaderLoader { def createShader(gl: GL4, shaderType: Int, context: Class[_])(filename: String): ShaderCode = { ShaderCode.create(gl, shaderType, 1, context, Array(filename), false); } def createProgram(gl: GL4, shaders: ShaderCode*): ShaderProgram = { val retVal: ShaderProgram = new ShaderProgram(); retVal.init(gl); for(shader <- shaders) { retVal.add(shader); } return retVal; } } class Demo1 extends GLEventListener { override def init(drawable: GLAutoDrawable): Unit = { val gl: GL4 = drawable.getGL().getGL4(); val createVertexShader = ShaderLoader.createShader(gl, GL2ES2.GL_VERTEX_SHADER, this.getClass())_; val createFragmentShader = ShaderLoader.createShader(gl, GL2ES2.GL_FRAGMENT_SHADER, this.getClass())_; try { val vShader: ShaderCode = createVertexShader("shaders/vshader.glsl"); if(vShader.compile(gl, System.out) == false) throw new Exception("Failed to compile vertex shader"); val fShader: ShaderCode = createFragmentShader("shaders/fshader.glsl"); if(fShader.compile(gl, System.out) == false) throw new Exception("Failed to compile fragment shader"); program = ShaderLoader.createProgram(gl, vShader, fShader); if(program.link(gl, System.out) == false) throw new Exception("Failed to link program"); //No longer needed vShader.destroy(gl); fShader.destroy(gl); val vertexArrays: IntBuffer = IntBuffer.allocate(1); gl.glGenBuffers(1, vertexArrays); vBuffer = vertexArrays.get(); } catch { case e: Exception => { e.printStackTrace(); System.exit(1); } } } } ```

In this you can see that I have created a ShaderLoader object to help reduce some of the boilerplate with creating shaders and programs. By using currying and partial defined functions I am able to create two helper methods that simply take filenames of the shader source files I wish to load. JOGL also defines helper classes named ShaderCode and ShaderProgram for creating and managing your OpenGL objects, versus the normal way of managing a bunch of abstract integer values. The basic flow is to fist create your shaders and compile them, add them to a program and then link the program, the one piece of information you need to retain after doing all of this is the program identifier. That identifier will be used during the display loop together with vertex arrays/buffers in order to render objects.

The shaders used for this application are simple and were pulled from the first sample in the OpenGL Superbible. Our vertex shader takes no input and produces a hardcoded value as the output position: ``` #version 430 core void main(void) { gl_Position = vec4(0.0, 0.0, 0.5, 1.0); } ```

Our fragment shader also takes no input and produces a hardcoded color value as the output: ``` #version 430 core out vec4 color; void main(void) { color = vec4(0.0, 0.8, 1.0, 1.0); } ```

Normally the vertex shader would be provided a vertex as input which we could then manipulate with things like our MVP matrix to controls its position in our 3D world. For now we will basically render a point directly in the middle of the screen. The fragment shader would normally also be provided information on how to color each vertex, or perhaps information related to a texture, that would then be interpolated between vertices. Our fragment shader however will always set the color of each vertex to a hardcoded value.

With our application initialized and our shaders created we can create our code to actually draw something: ``` override def display(drawable: GLAutoDrawable): Unit = { val gl: GL4 = drawable.getGL().getGL4(); val redArray: Array[Float] = Array(1.0f, 0.0f, 0.0f, 1.0f); gl.glClearBufferfv(GL2ES3.GL_COLOR, 0, redArray, 0); program.useProgram(gl, true); gl.glBindVertexArray(vBuffer); gl.glPointSize(20.0f); gl.glDrawArrays(GL.GL_POINTS, 0, 1); } ```

This will set the default color of all pixels to red with a call to glClearBufferfv. After that we set the program we created during intialization to our active program, this means that any vertices rendered with glDrawArrays will be processed using the shaders linked to that program. The call to glBindVertexArray will specify which set of vertices will be fed into the shaders, this data is not actually used for the application but is still necessary. For now we are going to render a single point on the screen which is why we passed in 'GL.GL_POINTS', we also increase the size of that point with a call to glPointSize to make it easier to see. If we wanted to render triangles or other objects we would change the first argument to 'glDrawArrays' to something else, but that will also require additional vertices to work. For example you would need at least three vertices in order to render a triangle.

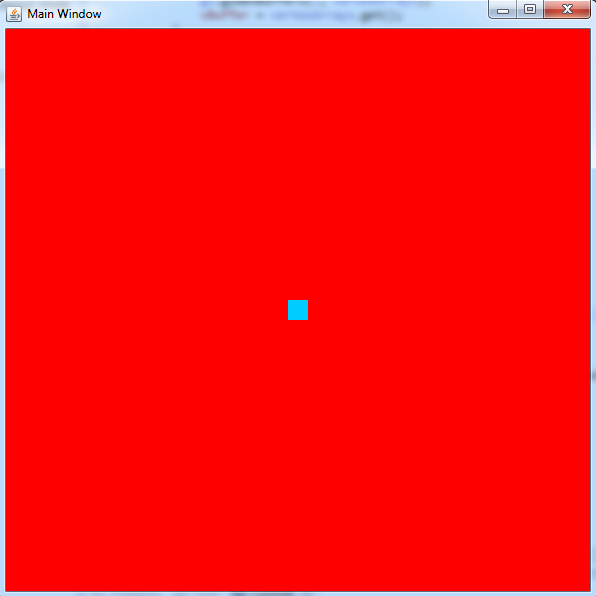

When we run the program this is what we see:

You can download the files for this project here: Download Project Files. They are compatible with the Scala SDK version 3.0.2 for Windows x86_64.
